Newly rEFURBISHed -

MODERN 3' x 4' Vacuum Rotary (3-Station)

Fully upgraded and production-ready, this vacuum rotary has been modernized for performance and reliability.

SPECIFICATIONS:

• Modern Electric driven platens (SEW)
• Stroke 24" top & 26" bottom
• Dual vacuum loop top/bottom
• 3HP Busch cap-pump w/300 gallon reservoir
• Electric rotate (SEW)
• 4-post load table w/ adjustable sheet stops
• (4) cooling fans
• Quartz oven, 650 watt 3" x 9" heaters
• (14) zones of oven control
• AB Compact Logix PLC control
• Advantech PC HMI
• Full perimeter guarding w/ interlocks
• Light curtains in load area
• New operations manual

Newly Constructed -

MODERN 5' x 6' SS Vacuum Shuttle

A compact, high-performance vacuum shuttle ideal for versatile production environments.

SPECIFICATIONS:

• Electric driven platens (SEW)

• Stroke 24" bottom & 48" top

• Dual vacuum loop with 500 gallon reservoir

• Electric shuttle car (SEW)

• Top-load 4-way adjustable clamp frames

• Quartz oven (504) 400 watt 3" x 5" heaters

• (84) zones of oven control, HC-600 Hetronik

• Sag Eyes and IR Sensor included

• (8) 1/4 cooling fans

• AB Compact Logix PLC control

• Advantech PC HMI

• Full perimeter guarding w/ interlocks

• Load/unload guarded w/ light curtains

• Mezzanine for loading and unloading

Newly rEFURBISHed -

MODERN 6' x 9' 223RP Pressure Rotary (3-Station)

Fully upgraded and production-ready, this pressure rotary has been modernized for performance and reliability.

SPECIFICATIONS:

• Electric Driven SEW Platens

• New Air Bags on Pressure system

• Stroke 50” bottom & 72” top

• Dual Vacuum Loop, with Twin

• 500 Gallon Reservoirs

• New SEW Rotate Package

• New Bottom-Load 4-way adjustable Clamp frames

• New Ceramic Oven (462) 650 watt 3”x9” Heaters

• 144 Zones of Control, 3 elements per zone, SSR

• New Oven Air-jet safety system

• Sag Eyes and IR Sensor included

• (8) ¼ Reconditioned Cooling Fans

• AB Compact Logix PLC Control

• Advantech PC HMI

• Full Perimeter Guarding with interlocks

• Reconditioned 4-post Load table

• Load/unload area guarded with NEW Light Curtains

• High sheet-line 100”

Newly Refurbished  -

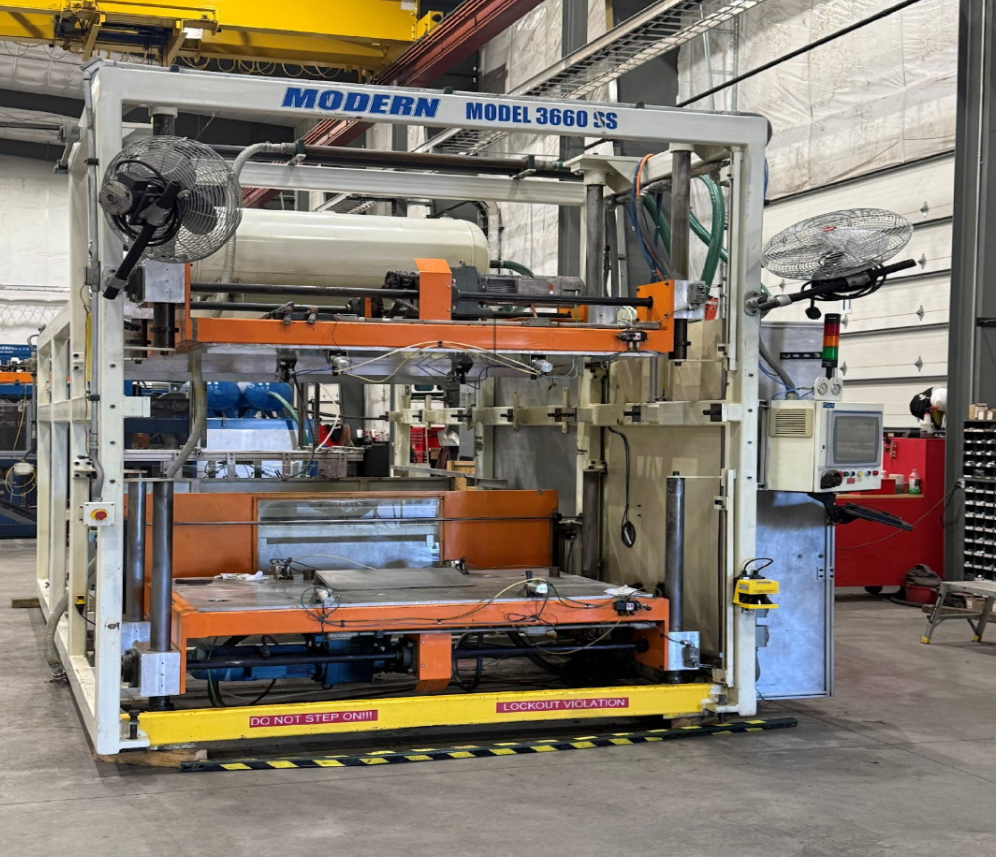

MODERN 3' x 5' SS Vacuum Shuttle with Auto-Load

SPECIFICATIONS:

• Electric Driven SEW Platens

• Stroke 36” bottom & 36” top

• Platens equipped with 8 Destaco Locking cylinders, 4 top and 4 bottom

• Dual Vacuum Loop, with Twin 120 Gallon Reservoirs

• Twin 5HP Busch Vacuum Pumps

• Electric shuttle car SEW

• Reconditioned Bottom-Load 4-way adjustable Clamp frames

• New Rails, Chain, and sprockets for Shuttle system

• New Sheet-car

• New Quartz Oven (168) 650 watt 3”x9” Heaters

• 56 Zones of Control, SSR controlled

• Sag Eyes and IR Sensor included

• (4) High Volume Cooling Fans

• AB Compact Logix PLC Control

• New Advantech PC HMI

• Full Perimeter Guarding with interlocks

• Auto-Load off from stack of material in rear of machine

• Unit has array of Piab suction cups for picking sheets

• Auto-Load guarded with Gate doors and an interlock

• Unloading of Formed part from the Form Station protected by an Area

• ScannerUnit has array of Piab suction cups for picking sheets

• Auto-Load guarded with Gate doors and an interlock

• Unloading of Formed part from the Form Station protected by an Area Scanner
